SALIENT POINTS
Why is CRUX leading the Fitness Revolution in India?
High‑capacity, multi‑user design
Four‑, five‑ and eight‑stack systems allow several users to train simultaneously, maximising throughput in busy facilities.
All key movements in one hub
Integrated stations for chest, back, legs and core, plus cable work, cover all major movement patterns without needing extra machines.
Independent weight stacks for all levels
Dedicated weight stacks with clear markings and simple pins provide quick progression and safe, guided resistance for all abilities.
Built as per the Indian physique
Ergonomic seats, rollers and access points are biomechanically engineered as per the Indian physiques to support movement transitions.
Multi-stations
Take a closer look
OSSAP – Single Adjustable Pulley
The ONYX Single Adjustable Pulley (OSSAP) is a compact cable machine offering a wide range of single-handle functional exercises. Ideal for isolation, rehab, and sport-specific training, it supports unilateral strength work in minimal space.
Highlights
Ideal for isolation and mobility work
Adjustable to suit all user heights
Compatible with multiple attachments
Includes
Height-adjustable single cable column
4:1 resistance ratio for precision control
Compact footprint for tight spaces
Easy-to-use selector pin and adjustment lever
Instructional chart for cable movements
Technical Specifications
Weight Stack: 100 kg
Resistance Ratio: 4:1
Machine Weight: 225 kg
Dimensions (L x W x H): 54” x 39” x 88”
OSDAP – Dual Adjustable Pulley
The ONYX Dual Adjustable Pulley (OSDAP) is a multi-functional cable trainer with two independent pulleys, each with height and angle adjustments. It allows a full range of functional, rehabilitation, and sport-specific training options.
Highlights
Ideal for personal training and rehabilitation
Replaces multiple single-function machines
Supports both dynamic and isolated strength work
Includes
Two independent, height-adjustable pulleys
Multi-grip pull-up bar integrated on top
Open frame for unrestricted movement
Large cable range for full-body exercises
Integrated storage hooks and accessory holders
Technical Specifications
Weight Stack: 2 x 100 kg
Machine Weight: 422 kg
Dimensions (L x W x H): 81” x 48” x 91”
OSACC – Adjustable Cable Crossover
The ONYX Adjustable Cable Crossover (OSACC) offers full-range cable training across two adjustable arms. Ideal for upper, core, and lower-body training, it suits functional training, hypertrophy work, and rehab equally well.
Highlights
Suitable for group or individual use
Supports dynamic warm-up and cool-down
Multi-functional strength and mobility tool
Includes
Twin pulley arms with adjustable height and angle
Integrated chin-up bar with multiple grip options
Open frame supports dynamic, multi-directional movements
Space to train two users simultaneously
Large range of motion for all planes
Technical Specifications
Weight Stack: 2 x 100 kg
Machine Weight: 483 kg
Dimensions (L x W x H): 142” x 58” x 94”
OS4MS – 4-Stack Multi Station
The ONYX 4-Stack Multi Station (OS4MS) is a compact training hub with four essential stations built into one frame. Designed for busy facilities, it allows multiple users to train simultaneously with minimal space requirements.
Highlights
Ideal for circuit training and group classes
Durable and low maintenance design
All-in-one strength zone solution
Includes
Four integrated stations: Pulldown, Row, Adjustable Pulley and Triceps/Biceps
Shared frame with dedicated weight stacks
Multi-user design saves time and floor space
Instruction placards for each station
Accessory hooks and cable storage
Technical Specifications
Weight Stacks: 4 x 100 kg
Machine Weight: 676 kg
Dimensions (L x W x H): 132” x 92” x 92”
OS5MS – 5-Stack Multi Station
The ONYX 5-Stack Multi Station (OS5MS) adds an additional training module to the 4-stack system, enhancing capacity and variety. It enables high-volume, group-based training in a compact, multifunctional design.
Highlights
Encourages team-based and functional training
Reduces equipment clutter in gyms
Scalable for personal or group sessions
Includes
Five stations including cable crossover and adjustable pulley
Designed for high-volume use with multiple users
Multiple attachments for custom workouts
Clear signage and colour-coded adjustments
Shared frame reduces footprint
Technical Specifications
Weight Stacks: 5 x 100 kg
Machine Weight: 941 kg
Dimensions (L x W x H): 198” x 132” x 94”
OS8MS – 8-Stack Multi Station
The ONYX 8-Stack Multi Station (OS8MS) is a large-capacity training system that supports up to eight users at once. With integrated crossover, pulldown, row and adjustable pulley options, it delivers unmatched versatility.
Highlights
Designed for premium fitness centres
Ideal for circuit or strength class stations
High ROI for multi-user zones
Includes
Accommodates up to 8 users simultaneously
Includes all major cable movement stations
Cable crossover built-in
Independent weight stacks for uninterrupted training
Technical Specifications
Weight Stacks: 8 x 100 kg
Machine Weight: 1392 kg
Dimensions (L x W x H): 1254” x 158” x 94”
O3MG – 3-Stack Multi Gym
The ONYX 3-Stack Multi Gym (O3MG) is an all-in-one strength training station designed for simultaneous use by three individuals. It integrates three key training modules—pulldown, press and leg extension/curl—within a compact footprint.
Highlights
Ideal for limited-space training areas
Durable, low-maintenance design
Supports solo or group circuits
Includes
3 exercise stations built into one frame
Supports simultaneous multi-user training
Full-body coverage: upper, lower, core
Dedicated weight stacks for each module
Includes accessories and instructional placards
Technical Specifications
Weight Stacks: 3 x 100 kg
Machine Weight: 637 kg
Dimensions (L x W x H): 118.5” x 98.4” x 88.5”
J1MG – Single Station Multigym
The JADE Series J1MG Single Station Multigym is a space-efficient strength training solution that combines multiple movement patterns in a compact footprint. It’s ideal for users who want full-body resistance training in a single machine.
Highlights
Efficient all-in-one unit for strength circuits
Excellent for guided resistance training
Easy to maintain and adjust
Includes
Multi-exercise functionality: Chest press, lat pulldown, leg extension and more
Dual-function pulleys for versatile cable training
Comfortable backrest and seat with ergonomic angles
80 kg precision weight stack with selector pin
Compact footprint, ideal for studios or home use
Technical Specifications
Dimensions (L × W × H): 79” x 38” x 84”
Net Weight: 241 kg
Weight Stack: 100 kg

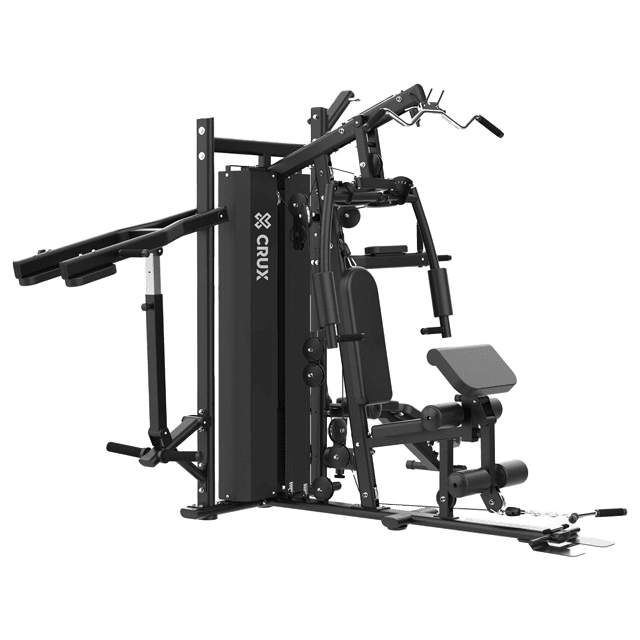

J3MG – Three Station Multigym
The JADE J3MG Three Station Multigym offers simultaneous full-body training for up to three users. With dedicated stations for upper body, lower body and cable-based exercises, it is a comprehensive and space-saving training solution.
Highlights
High-capacity multigym for small group training
Space-efficient alternative to multiple single units
Minimal maintenance with maximum variety
Includes
Three distinct training stations with individual weight stacks
Integrated pulleys and cable crossover setup
Chest/Shoulder, Lat Row and Leg Curl/Extension included
Highly stable frame with low profile design
Each stack is independently selectable for multi-user sessions
Technical Specifications
Dimensions (L × W × H): 130” x 94” x 87”
Net Weight: 301 kg
Weight Stacks: 100 kg
J4MG – Four Station Multigym
The JADE J4MG Four Station Multigym is a fully integrated multi-user training system that supports up to four simultaneous users. It combines major compound and isolation movements into one professional-grade unit.
Highlights
Space-saving solution for group training
Durable and low maintenance
Adds variety and flow to gym floor plans
Includes
Four-sided training with 4 independent stacks
Includes Chest/Shoulder Press, Lat Pulldown, Leg Extension, Low Row
Cable crossover attachments with adjustable pulleys
High load capacity for advanced users
Compact central footprint reduces space usage
Technical Specifications
Dimensions (L × W × H): 130” x 116” x 87”
Net Weight: 484 kg
Weight Stacks: 2 × 80 kg
JSC1 – Combo Machine 1 (Dual Adjustable Pulley + Power Rack)
The JADE Series Combo Machine 1 (JSC1) combines a dual adjustable pulley with a full power rack, offering the best of cable and barbell training in one integrated unit. Ideal for functional and strength training in compact spaces.
Highlights
Saves space by combining two stations
Excellent for PT sessions and functional training
Multiple grip pull-up bar for variation
Includes
2-in-1 system: Adjustable cables + power rack
22 height-adjustable pulley positions
Integrated J-hooks and spotter arms
Dual 100 kg selectorised stacks
Multi-grip pull-up bar included
Technical Specifications
Dimensions (L × W × H): 82” x 65” x 83”
Net Weight: 430 kg
Weight Stack: 2 × 80 kg
JSC2 – Combo Machine 2 (Dual Adjustable Pulley + Smith + Half Rack)
The JADE JSC2 Combo combines a dual adjustable pulley with a built-in Smith machine and half rack. This multi-station powerhouse accommodates guided and free-form strength training in one station.
Highlights
Combines strength, hypertrophy, and functional training
Great for semi-supervised gym areas
Perfect balance of guided and free motion
Includes
Triple function: Cable system + Smith + Half Rack
Smith bar on linear bearings for smooth movement
Safety catchers for Smith lifts
J-hooks and spotter arms for free weight training
22 cable height positions and multi-grip chin-up bar
Technical Specifications
Dimensions (L × W × H): 82” x 65” x 83”
Net Weight: 430 kg
Weight Stack: 2 × 80 kg
JSC3 – Combo Machine 3 (Dual Adjustable Pulley + 3D Rack)
The JADE JSC3 Combo integrates a dual adjustable pulley with a 3D motion rack system, enabling freedom of movement for advanced strength training. This highly modular design is ideal for progressive training environments.
Highlights
Advanced hybrid station for athletes
3D bar path allows real-world movement simulation
Ideal for strength, rehab and mobility training
Includes
Dual adjustable pulley + 3D barbell track
Barbell moves both vertically and horizontally
Pulley arms with height and angle adjustment
Compact footprint with multiple storage options
Heavy-duty frame with stabilising base
Technical Specifications
Dimensions (L × W × H): 82” x 65” x 83”
Net Weight: 450 kg
Weight Stack: 2 × 80 kg
CRUX CATALOGUE
Get the latest details on the full range of Crux products and services.
DOWNLOAD CATALOGUE
GET IN TOUCH
Let's get started
We’re here to work for you. Tell us a bit about your business, budget and growth goals and we’ll take it from there.
contact us
Frequently asked questions
For open cable training, we offer the Single Adjustable Pulley station (OSSAP 100 kg stack), the independent Dual Adjustable Pulley system (OSDAP 100 kg X 2), and the wide-span, high-clearance Adjustable Cable Crossover matrix (OSACC).
The space-efficient OS4MS consolidates four essential heavy-compound cable stations into a centralised hub. It features a Single Adjustable Pulley, a dedicated Lat Pulldown, an ergonomically correct Low Row, and a specialised integrated vertical Leg Press.
The OS8MS 8-Stack Multi Station is the ultimate focal point for high-traffic facilities, weighing a monumental 1392 kg. It spans an operational layout of 254" X158" X94", incorporating an Adjustable Cable Crossover, dual Lat Pulldowns, dual Low Rows, and a dual Leg Press configuration.
The JIMG is a masterclass in spatial efficiency, delivering over 14 discrete full-body functions within a single footprint. It supports a Chest Press, Pec Fly, Lat Pulldown, Seated Row, Preacher Curl, and a 100 kg shrouded stack.
Both feature dual 80 kg weight stacks. However, while the JSC1 combines a Dual Adjustable Pulley with an open structural Power Rack , the JSC2 builds further utility by packing a Dual Adjustable Pulley, a guided linear Smith Machine track, and a space-saving Half Rack.
The JSC3 Combo Machine 3 features our specialized architectural 3D Rack system combined with a premium Dual Adjustable Pulley layout, driven by twin independent 80 kg commercial weight stacks.
